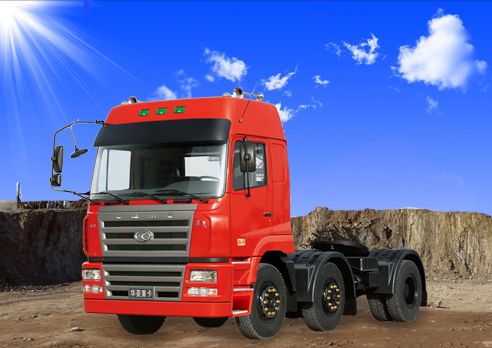

(CAMC Heavy Truck Series) CAMC 6x2 Sandard Model tractor truck
| Product Name |
Tractor Truck |
| Product Model |
HN4221P38B8M/HN422P34B5M3 |
| Manufacturer |
Anhui Hualing Automobile Co.,Ltd |
| Place of Origin |
Maan shan, Anhui, China |
| Kerb mass |
7.8ton |
| Rated Payload |
38ton |
| Drive Type |
Left-Hand(Optional RHD) |
| Drive Model |
6×2 |
| Vehicle Body Color |
Red(optional) |
| Overall Dimension (L x W x H)mm |
7090x2495x3600(3100 for flat-roof cabin) |
| Engine |
Brand |
CUMMINS/WEICHAI |
| Model |
L345 20/WP10.340E32 |
| Max. Power (kw/r/min) |
254/2200//250/2220 |
| Displacement |
8900ml/9726ml |
| Emission Standard |
Euro II |
| Clutch |
Model |
Φ430 diaphragm spring |
| Transmission |
Brand |
FAST GEAR |
| Model |
9JS150T (9-speed & 1-reverse) |
| Type |
twin countershaft; all synchronizer |
| The Number of Axles |
3 |
| Rear Axle(drive axle)-Model |
13T |
| Front Axle-Model |
7.5T |
| Cabin type |
European style high-roof (optional CF,EF,CH) |
| Cabin |
With A/C, Radio, Bunk |
| Brake System |
Full air brake with exhaust brake (optional ABS) |
| Steering System |
HITACHI |
| Wheelbase (mm) |
1850+2850 |
| Wheel/Tire |
Type |
Bias/Radial tube/Radial tubeless |
| Model(optional) |
11.00-20/11.00R20/11R22.5 |
| 12.00-20/12.00R20/12R22.5 |
| Tire number |
8+1 |
| Fuel Tank |
Volume(L) |
380 (optional 500L) |
| The fifth wheel (Saddle) |
JOST 50# /2 inches ;(optional 90#/3.5inches) |
| The working platform |
With |
| Front overhang/Rear overhang(mm) |
1370/1020 |
| Approach/Departure Angle(°) |
24/28 |
| No. of steel spring(front/rear) |
9/9/9+6 |
| Max. Speed (km/h) |
90 |
& Due to improvements made to the product, data herein is subject to change without notice.
& Different outfits are provided for the different configurations of the motor vehicles.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
& CAMC reserves the rights to make final explanations.
