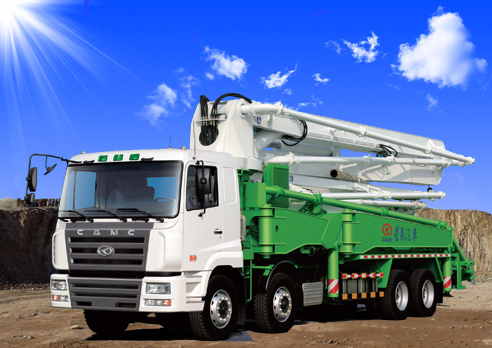

(CAMC Heavy Truck Series) Pump truck Features:
1. Our pump truck is a kind of special vehicle widely used in construction industry both China and abroad. It belongs to construction machinery.
2. Pump truck carries hose, water and tools to fit the requirement in fire accident. It contains a variety of pumps.
3. Our pump truck is designed with rational structure and particular appearance. The pump truck works with high efficiency. Operating system of this pump truck is convenient with comfortable seat to relax.
4. Our pump truck works with high performance by using famous Caterpillar, Cummings and Weichai engines. This effective distance of (42m) pump truck is much longer, be suitable to be used in higher places.
|
No.
|
Vehicle
model
|
Chassis
model
|
Engine Model
|
Engine
Power(KW)
|
GVW
(kg)
|
|
1
|
AH5290THB
|
HN5290P37E2M3J
|
6M70/WP12.37/, ISLe350 30
|
279/274/258
|
29000
|
|
2
|
AH5340THB
|
HN5340P37D6M3J
|
6M70/WP12.37/, ISLe350 30
|
279/274/258
|
34000
|
|
3
|
AH5381THB
|
HN5380P37D6M3J
|
6M70/WP12.37/, ISLe350 30
|
279/274/258
|
38000
|
|
4
|
AH5470THB
|
HN5474P42E2M3J
|
ISME420 30/6M70
|
306/279
|
47000
|
|
No.
|
Vehicle
model
|
Overall
dimension
(mm)
|
Wheelbase
(mm)
|
Maximum
theoretical
delivery volume
(m3/h)
|
Max.
Vertical
(m)
|
Number
of boom
section
|
|
1
|
AH5290THB
|
12440×2495×3930
|
5220+1450
|
38.9
|
4
|
120
|
|
2
|
AH5340THB
|
12600×2495×3990
|
1940+4605+1450
|
41.8
|
5
|
135
|
|
3
|
AH5381THB
|
12750×2495×3990
|
1940+4605+1450
|
46.8
|
5
|
135
|
|
4
|
AH5470THB
|
14560×2495×3995
14090×2495×3995
|
1940+5200+1450+1600
1940+4730+1450+1600
|
51.8
|
5
|
150
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Different outfits are provided for the different configurations of the motor vehicles.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
& CAMC reserves the rights to make final explanations.
If you need more parameters please contact us or send us Email
