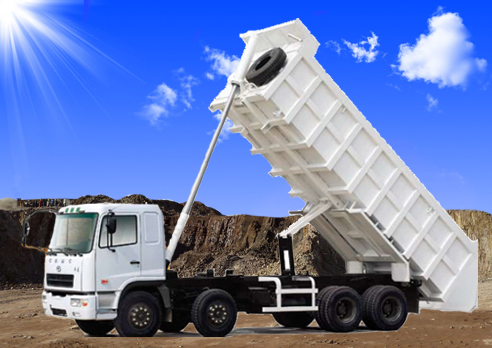

(CAMC Star Series) CAMC 8×4 Dump Truck with Mitsubishi style cab
Features of 8×4 Self-Unloading Truck
1. Our company has a professional R & D team for manufacturing CAMC dump trucks. They are well received by our customers all over the world.
2. This tipper truck is featured with outstanding power performance, economical efficiency, reliability and environmental protection.
3. CAMC 8×4 self-unloading truck possesses compact structure, strong load capacity, strong power, stable performance and higher market awareness.
4. This tipper truck can adapt to harsh environments of construction site and mining area.
Technical Specifications of 8×4Self-Unloading Trucks:
|
|
Dump Truck
|
|
Product Model
|
HN3312A34CLM4
|
|
Place of Origin
|
Maan shan, Anhui, China
|
|
Kerb mass
|
14ton
|
|
Rated Payload
|
40-60ton
|
|
Drive Type
|
Left-Hand(optional RHD)
|
|
Drive Model
|
8x4
|
|
Vehicle Body Color
|
Yellow(optional)
|
|
Overall Dimension (LxWxH)mm
|
9000x2495x3340
|
|
Body interior (mm)
|
6200×2300×1200
|
|
Engine
|
Brand
|
Dongfeng Cummins
|
|
Model
|
CM6D18.375 30
|
|
Max. Power (kw/r/min)
|
375/2200
|
|
Max. T Qrgue(Nm/r/min)
|
1480/1400
|
|
No. of cylinder
|
6
|
|
Bore x Stroke(mm)
|
114x145
|
|
Displacement
|
8900ml
|
|
Control Type
|
Mechanical
|
|
Air Cleaner
|
Dry Paper Element
|
|
Emission Standard
|
Euro II
|
|
Clutch
|
Type
|
Hydraulic control with air assisted
|
|
Plate diameter
|
dry single plate with diaphragm
outside diameter: 430 mm
|
|
Transmission
|
Brand
|
FAST GEAR
|
|
Model
|
8SDJ1981
|
|
Type
|
Mechanical
|
|
The Number of Axles
|
4
|
|
Rear Axle(drive axle)-Load
|
16000kgx2
|
|
Front Axle-Load
|
7500kgx2
|
|
Cabin type
|
Classic flat-roof (optional EF,CH,EH)
|
|
Cabin
|
With A/C, Radio, MP3,Bunk
|
|
Brake System
|
Service
|
Full air brake dual ciruit
|
|
Parking
|
Spring actugtor at rear wheels
|
|
Auxiliary
|
Exhaust break
|
|
Steering System
|
recirculation ball with integral power
assisted by oil
|
|
Wheelbase (mm)
|
1850+2850+1350
|
|
Wheel/Tire
|
Type
|
Bias/Radial tube/Radial tubeless
|
|
Model(optional)
|
11.00-20/11.00R20/11R22.5
12.00-20/12.00R20/12R22.5
|
|
Tire number
|
12+1
|
|
Fuel Tank
|
Volume(L)
|
350
|
|
Body Steel Thickness
|
Bottom 8mm/Side 5mm
|
|
Body Lifting System
|
Hydraulic Front Lift
|
|
Front overhang/Rear overhang(mm)
|
1370/1000
|
|
Approach/Departure Angle(°)
|
24/23
|
|
No. of steel spring(front/rear)
|
9/12
|
|
Max. Speed (km/h)
|
75
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Different outfits are provided for the different configurations of the motor vehicles.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
& CAMC reserves the rights to make final explanations
