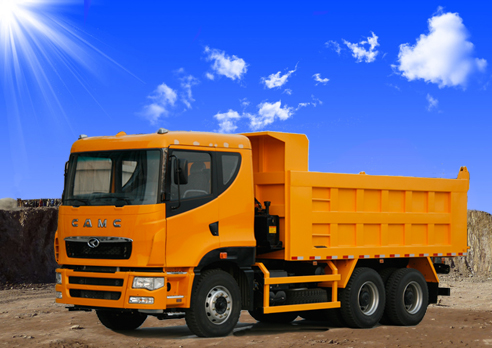

6×4 Dump Truck
H08 6×4 Dump truck

With annual production capacity of 100,000 heavy dump trucks, at present, we have already formed the high-end series heavy dump truck 6×4 represented by Xingkaima, the middle and high-end series products represented by CAMC heavy dump truck and the middle-end series products represented by CAMC Star, which is able to satisfy the different demands of users at different levels in domestic and abroad.

The List of main performance parameters about H08 Tipper:

HN3252A31C6M4
Driving Model
6×4
Cab Model
H08 Flat Roof
Overall Dimension (L*W*H)(mm)
8460*2496*3360
Engine Model
CM6D18.345 30
Engine Brand
HINO
Engine Power/Speed (kw/rpm)
240/2100
Gearbox Model
8SDJ1981
Frontal Axle Model
CAMC
Driving Axle Model/Ratio
CAMC/5.73
Tire Specifications
12R22.5
Wheelbase(mm)
3600+1350
Front Suspension(mm)
1550
Rear Suspension (mm)
1960
Tread(F/R) (mm)
2065/1860/1860
Number of Plate Spring(F/R)
9/12
Kerb mass(kg)
11950
GVW(kg)
25000
Permitted Front Axle Load(kg)
7000
Permitted Rear Axle Load(kg)
18000
Max. Speed(km/h)
78
Cargo Body Inside Size(L*W*H)(mm)
5400*2300*1250
Minimum ground clearance(mm) Under rear axle
330
Approaching angle(°)
22
Departure angle(°)
27
Minimum turning diameter(m)
13.6



Note: The cab, engine, gearbox, tire,color,cargo body size and others have options.
& Due to improvements made to the product, data herein is subject to change without notice.
& Different outfits are provided for the different configurations of the motor vehicles.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
& CAMC reserves the rights to make final explanations
