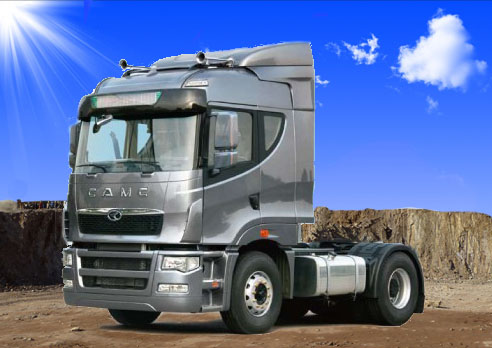

(Xingkaima Series) H08 Model 4x2 Tractor Truck:
|
Vehicle Model
|
HN4182A31C4M4
|
|
Driving Model
|
4×2
|
|
Cab Model
|
H08 High Roof
|
|
Overall Length(mm)
|
5970
|
|
Overall Width(mm)
|
2496
|
|
Overall Height(mm)
|
3930
|
|
Engine Model
|
CM6D28.410 30
|
|
Engine Brand
|
CUMMINS
|
|
Gearbox Model
|
16SDB1981
|
|
Frontal Axle Model
|
CAMC
|
|
Driving Axle Model/Ratio
|
CAMC/4.7
|
|
Tire Specifications
|
12R22.5
|
|
Wheelbase(mm)
|
3400
|
|
Front Suspension(mm)
|
1550
|
|
Rear Suspension(mm)
|
1100
|
|
Tread(F/R)(mm)
|
2065/1860
|
|
Kerb mass(kg)
|
7800
|
|
Permitted Front Axle Load(kg)
|
6500
|
|
Permitted Rear Axle Load(kg)
|
11500
|
|
Minimum ground clearance(mm) under rear axle
|
257
|
|
Approaching angle(°)
|
14
|
|
Departure angle(°)
|
23
|
|
Minimum turning diameter(m)
|
8
|
Remarks: Due to improvements made to the product, data herein is subject to change without notice.Different outfits are provided for the different configurations of the motor vehicles.Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.CAMC reserves the rights to make final explanations.
