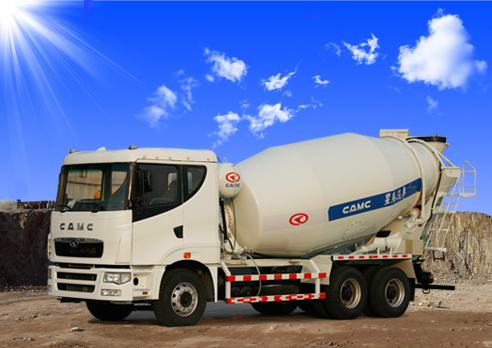

The List of main performance parameters about H08 Mixer Truck:
|
Vehicle Model
|
HN5250P35C6M3GJB
|
HN5250P35C6M3GJB
|
HN5250P35C6M3GJB
|
HN5250P35C6M3GJB
|
|
Driving Model
|
6×4
|
6×4
|
6×4
|
6×4
|
|
Cab Model
|
H08 Flat Roof
|
H08 Flat Roof
|
H08 Flat Roof
|
H08 Flat Roof
|
|
Overall Dimension (L*W*H)(mm)
|
9600*2496*3900
|
9600*2496*3900
|
9600*2496*3900
|
9600*2496*3900
|
|
Engine Model
|
P11C-UH
|
P11C-UJ
|
ISME345 30
|
ISME385 30
|
|
Engine Brand
|
HINO
|
HINO
|
CUMMINS
|
CUMMINS
|
|
Engine Power/Speed (kw/rpm)
|
240/2100
|
259/2100
|
254/1900
|
283/1900
|
|
Gearbox Model
|
ZF9S1820
|
ZF9S1820
|
ZF9S1820
|
ZF16S1650
|
|
Frontal Axle Model
|
CAMC
|
CAMC
|
CAMC
|
CAMC
|
|
Driving Axle Model/Ratio
|
CAMC/5.73
|
CAMC/5.73
|
CAMC/5.73
|
CAMC/5.73
|
|
Tire Specifications
|
12R22.5
|
12R22.5
|
12R22.5
|
12R22.5
|
|
Wheelbase(mm)
|
4100+1450
|
4100+1450
|
4100+1450
|
4100+1450
|
|
Front Suspension(mm)
|
1550
|
1550
|
1550
|
1550
|
|
Rear Suspension (mm)
|
1960
|
1960
|
1960
|
1960
|
|
Tread(F/R) (mm)
|
2065/1860/1860
|
2065/1860/1860
|
2065/1860/1860
|
2065/1860/1860
|
|
Number of Plate Spring(F/R)
|
9/12
|
9/12
|
9/12
|
9/12
|
|
Kerb mass(kg)
|
12800
|
12800
|
12800
|
12800
|
|
GVW(kg)
|
25000
|
25000
|
25000
|
25000
|
|
Permitted Front Axle Load(kg)
|
7000
|
7000
|
7000
|
7000
|
|
Permitted Rear Axle Load(kg)
|
18000
|
18000
|
18000
|
18000
|
|
Max. Speed(km/h)
|
78
|
78
|
78
|
78
|
|
Effective Mixing Volume (Cub m)
|
9
|
9
|
9
|
9
|
|
Minimum ground clearance(mm) Under rear axle
|
330
|
330
|
330
|
330
|
|
Approaching angle(°)
|
22
|
22
|
22
|
22
|
|
Departure angle(°)
|
27
|
27
|
27
|
27
|
|
Minimum turning diameter(m)
|
13.6
|
13.6
|
13.6
|
13.6
|
Note:The body color,engine,gearbox,tire.,ect have options.
& Due to improvements made to the product, data herein is subject to change without notice.
& Different outfits are provided for the different configurations of the motor vehicles.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
& CAMC reserves the rights to make final explanations
