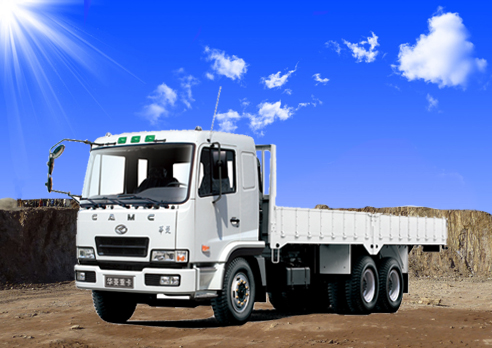

CAMC 6×4 cargo truck Features:
1. Its design is flexible, convenient and economic.
2. CAMC 6×4 cargo truck enjoys the advantages of compact structure, elegant line, wide vision, big door opening angle and cab tilting angle, easy maintenance, and so on.
3. This flatbed truck is also famous for its ergonomically designed driver’s space that harmoniously combines functionality with efficiency.
|
Product Name
|
Cargo Truck
|
|
Product Model
|
HN1250C27E8M4
|
|
Place of Origin
|
Maanshan,Anhui,China
|
|
G.V.W
|
25 ton
|
|
Kerb mass
|
11.5 ton
|
|
Payload
|
13.5 ton
|
|
Drive Type
|
Left Hand (optional RHD)
|
|
Drive Model
|
6×4
|
|
Engine
|
Brand
|
CUMMINS
|
|
Model
|
WP10.300
|
|
Max. Power (kw/r/min)
|
213/2200
|
|
Displacement
|
8300ml
|
|
Emission Standard
|
Euro III
|
|
Clutch
|
Model
|
Φ430 diaphragm spring
|
|
Transmission
|
Brand
|
FAST GEAR
|
|
Model
|
9JS119
|
|
Rear Axle(drive axle)-load
|
13 tonx2
|
|
Front Axle-load
|
7.5 ton
|
|
Cabin Type
|
European flat roof (optional CF,CH,EH)
|
|
Cabin
|
With A/C, Radio, Bunk
|
|
Steering System
|
HITACHI
|
|
Wheelbase (mm)
|
5220+1350
|
|
Wheel/Tire
|
Type
|
Bias/Radial
|
|
Model
|
11.00-20/11.00R20/12.00-20/12.00R20
|
|
Tire number
|
10+1
|
|
Oil Tank
|
Volume(L)
|
320
|
|
Dimensions(L×W×H)
|
Overall (mm)
|
11980x2495x3040
|
|
Body interior (mm)
|
8700x2300x800
|
|
Front overhang/Rear overhang(mm)
|
1370/3450
|
|
Approach/Departure Angle(°)
|
24/22
|
|
No. of steel spring(front/rear)
|
9/12
|
|
Max. Speed (km/h)
|
90
|
Remarks: Due to improvements made to the product, data herein is subject to change without notice.Different outfits are provided for the different configurations of the motor vehicles.Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.CAMC reserves the rights to make final explanations
